Tracker
Cybernet’s award-winning mobile Tracker tool cuts down UT grid inspection labor by 2 to 1 while tracking and displaying scan coverage in real time.
Better Deliverables + Faster Inspections
A “dummy proof” tracking system co-designed with U.S. Air Force NDI inspectors applying NASA technology invented by Cybernet

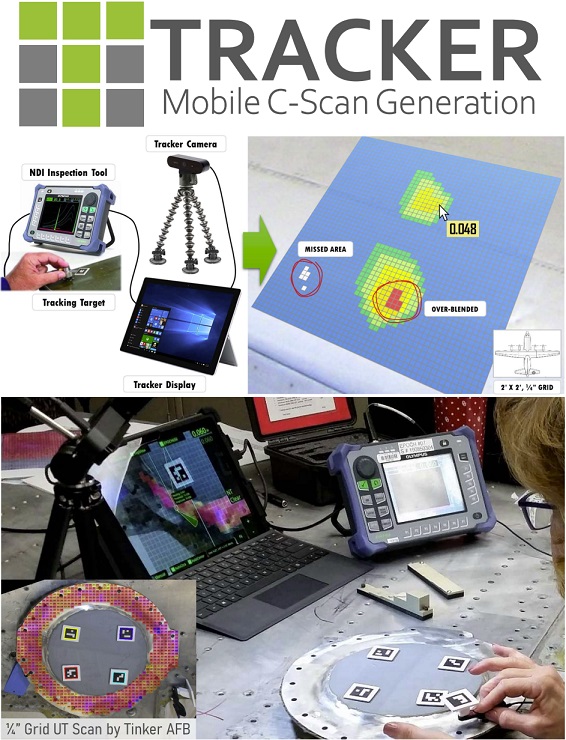

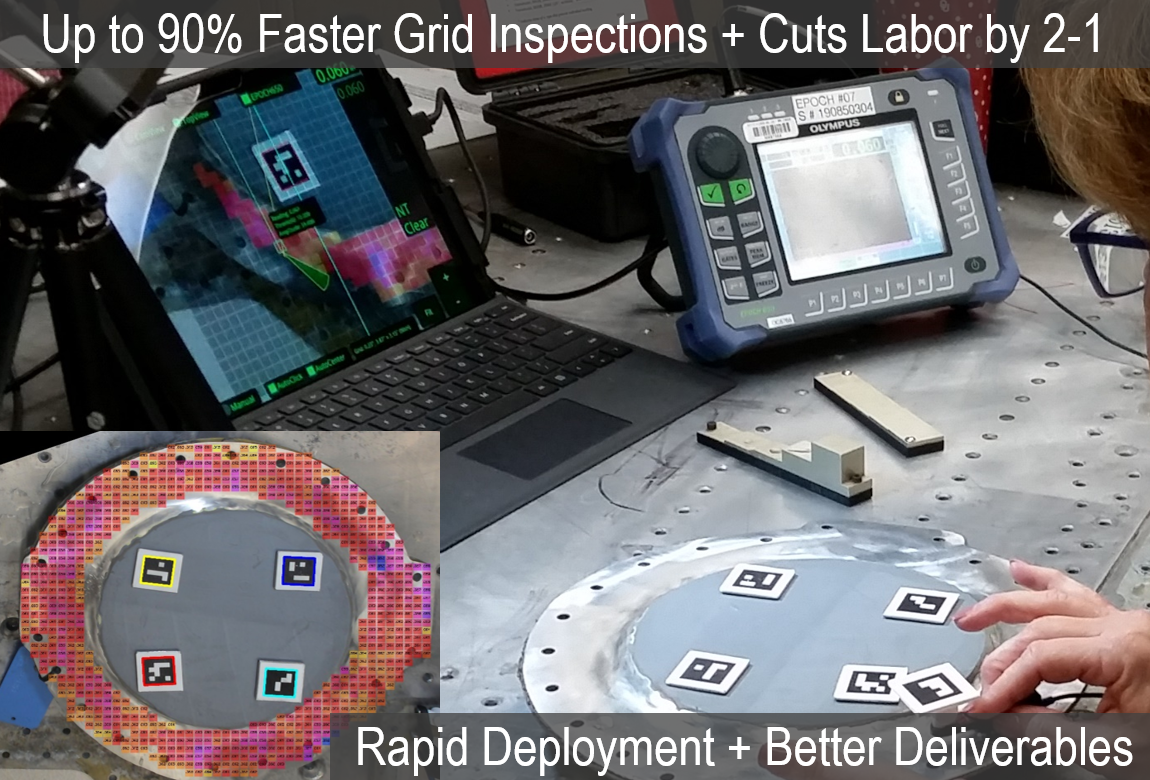

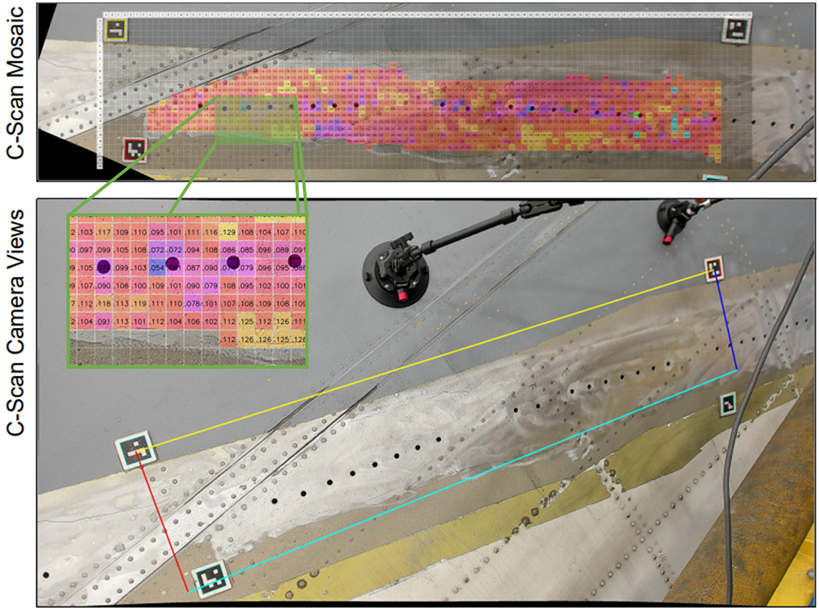

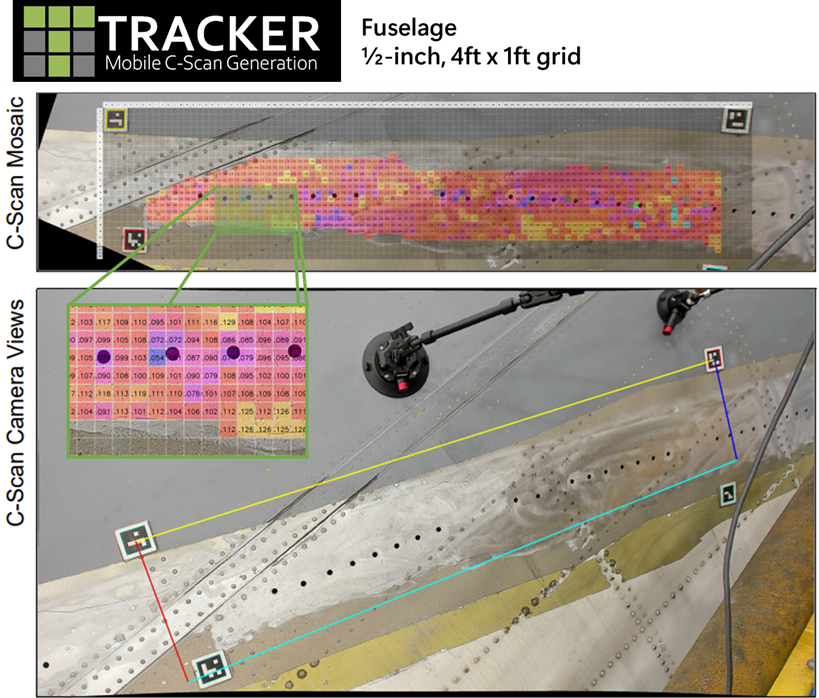

Displays a C-Scan grid of the inspected area with readings in real time and produces PDF and Excel reports
Increases maintenance flow rate and eliminates rework resulting in significant ROI
Smooth Integration, Less Labor
10 minute set up that connects with your existing ultrasonic, bond testing, and other NDT equipment
50% less inspection labor for UT grid inspections and faster turnaround time

Demos
News
Active Users

Tinker Air Force Base
Since 2019
Oklahoma City, OK

NASA Armstrong
Since 2022
Edwards Air Force Base, CA

Robins Air Force Base
Since 2023
Warner Robins, GA

Antelope Valley College
Since 2023
Lancaster, CA

ST Engineering
Since 2024
San Antonio, TX

Delta TechOps
Since 2024
Atlanta, GA

Delta TechOps
Since 2024
Minneapolis, MN
Frequently Asked Questions
The Tracker is optimized to track up to a 4ft x 4ft area in one session and can recognize the barcode targets from 0.5-5ft away. Larger areas are possible depending on lighting conditions and camera angles. These areas and distances are proportional to the target sizes, so if you require a larger or tighter scan areas we can customize the target attachment and marker sizes for your application. We also have a leapfrogging capability where three additional sessions can extend the scanned area. As long as two different markers are visible from the previous session the Tracker will patch them together to appear as one continuous scan.
The tracking precision is 1mm and the pixel size is 1/32-inch or 0.03125in. The tracking accuracy is approximately 1/16-inch using 2-inch targets and 1/8-inch using 1-inch targets.
Yes, the Tracker can track on curved surfaces like the fuselage and more aggressive curves such as the leading edge of the wing and engine cowling using our lightweight marker mounting brackets. For the aggressive curves we first scan the top surface, then move the camera to scan the 3-4 inches of the leading edge, and then scan the other side. In general, most curved surfaces are handled by dividing the area into two or three sessions. We also have a variety of flexible mounting accessories for the camera to track grid inspections on any surface of the aircraft as well as tighter spaces within its frame.
The price depends on the quantity of units and software modules you choose such as UT or Bond Testing, the marker sizes and target attachments for your probes, and other recommended accessories. We offer discounts to U.S. Government and Academic Customers. We also offer short term rentals and leasing options. Please contact us at tracker@cybernet.com with your requirements for a quote that will suit your needs.

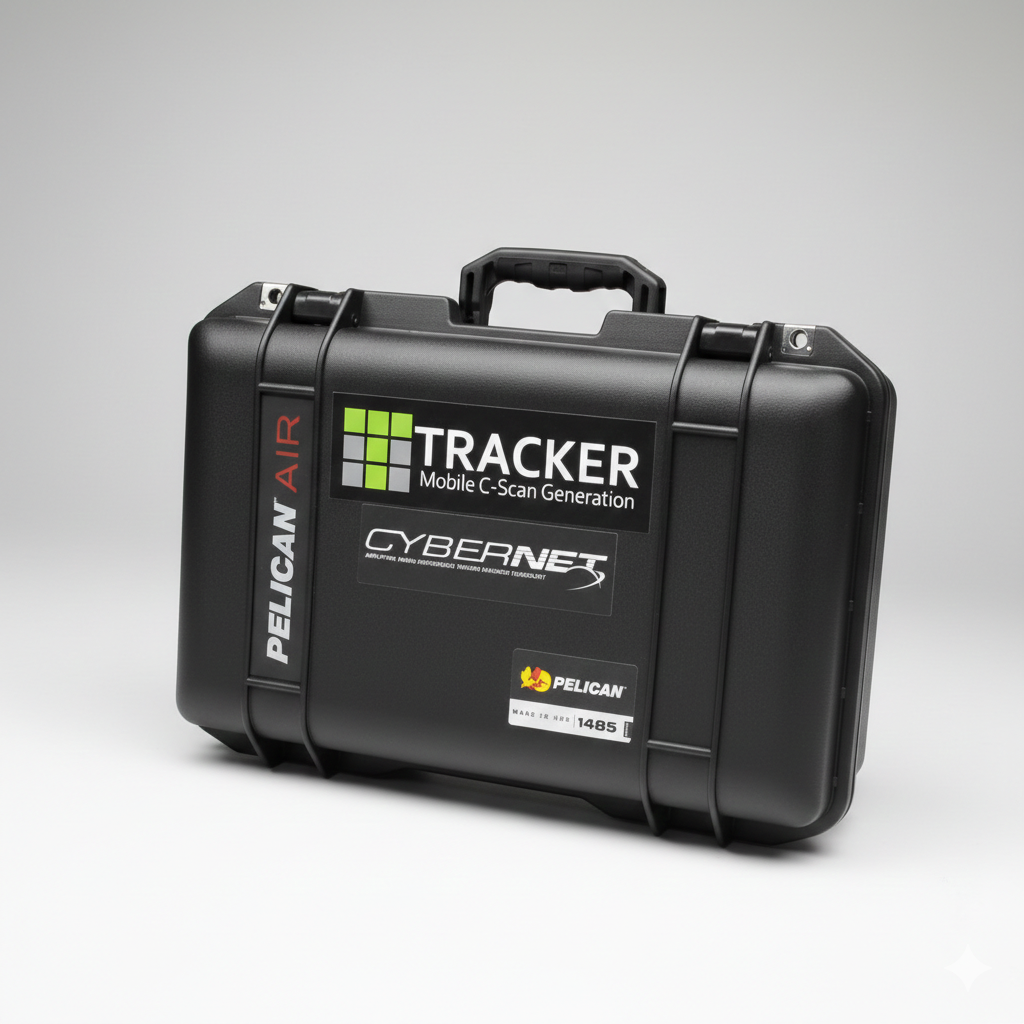

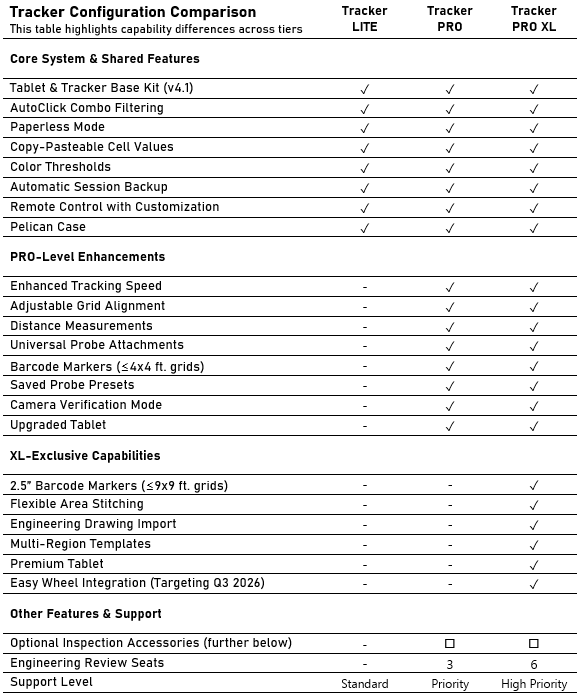

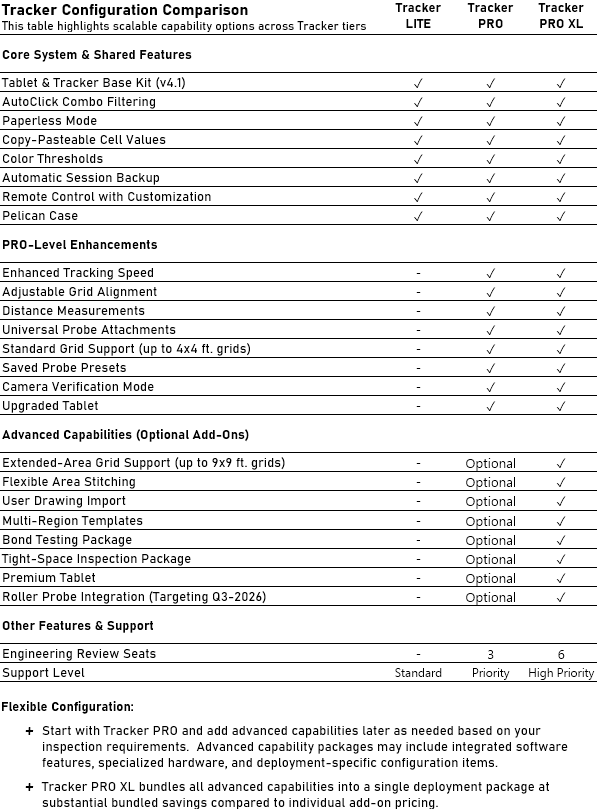

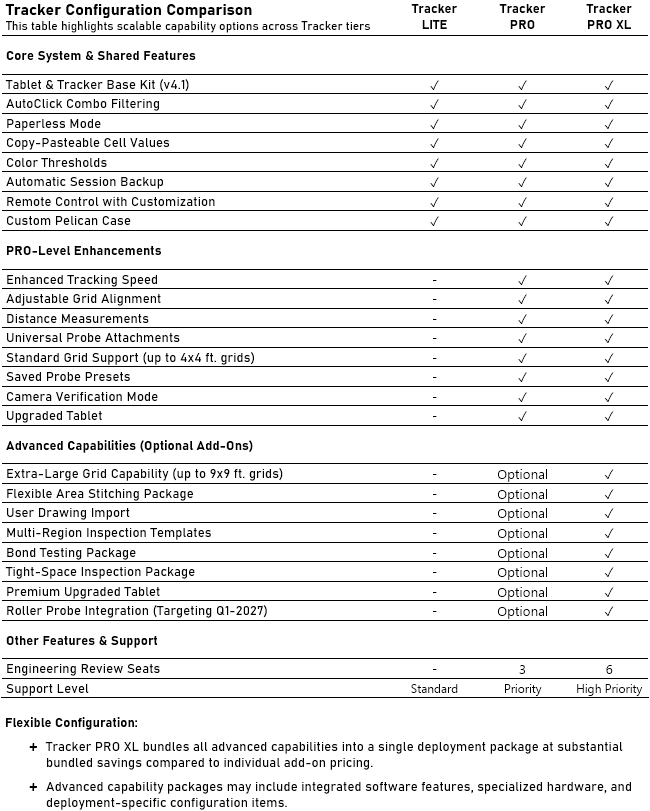

The Tracker Base Kit includes: • Surface Tablet & Tracker Base Kit Software • Camera with mounting plate and light • Portable tripod • 3-Suction Cup snake arm mount • Gooseneck clamp mount • Remote control • Battery bank • USB cables and hub • Hex screwdriver • Tool lanyard with locking carabineer • Large 2-inch marker support for increased range and accuracy • Small 1-inch marker support for tight spaces • Reusable sticky tabs • Leapfrogging support for optional 2-inch leapfrog markers to extend session areas • Universal attachment support for small, medium, and large probes • Configurable colors based on % deviation from nominal • Camera verification check report • Camera verification check support with optional camera verification check target • Rolling case with custom foam • User’s Guide
We currently offer two software modules: Ultrasonic Testing (UT) Software Module, which provides the interface for the Olympus EPOCH 650, 38DL PLUS, Waygate/GE/Krautkramer USN 60; and the Bond Testing (BT) Software Module which provides the interface for the Olympus Bondmaster 600.
The Tracker is device agnostic and currently interfaces with the Olympus EPOCH 650, 38DL PLUS, Waygate/GE/Krautkramer USN 60, and Bondmaster 600. The Tracker will automatically detect and connect to those device models without any modification. For other UT inspection device models besides these, if the device has a USB port that outputs readings in real-time we should able to interface with it. You would ship us the device we don’t already interface with for 1-2 weeks to develop the new device interface.
The Tracker currently offers pre-made custom target attachments for: Olympus M116, M208, V110, Sonopen V260-RM/-45/-SM, GE Alpha, CHG201, Pitch Catch S-PC-P12/P13/P14, and others. Our universal target attachments are compatible with most 0.26″-0.8″ barrel diameter cylindrical probes. We also manufacture custom target attachments for uniquely-shaped probes. You would ship your probes to us for 2-3 weeks to design and fit the attachments.
The estimated lead time for delivery of a Tracker Kit is 4-6 weeks, ARO. The longest lead time components are the custom case and any custom probe attachments. If you need the Tracker sooner we will work with you to get an interim kit that will start making an immediate impact.

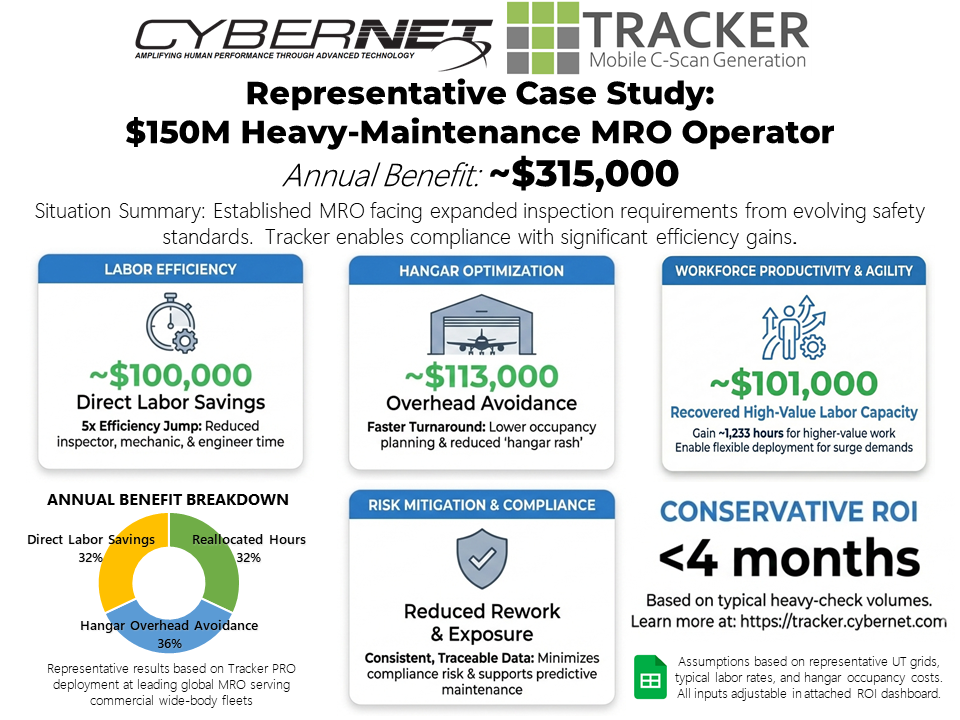

We do not have business cases we can share, however our users have reported impressive results with the Tracker in terms of labor savings (2 to 1), time savings (2-hour inspections now done in 15-minutes without manual grid drawing & recording), increased throughput (20-30% speed up in the inspection phase, reducing hours/days in hanger), and improved communication (color-mapped C-Scans overlaid on actual background imagery). We are happy to refer serious inquiries to our active users to relay their positive experiences.
Extensive training is not required to use the Tracker. The Tracker is designed to be intuitive understand and use. A User’s Guide is also included. We do offer in-person training to help get more inspectors up to speed faster and provide expert tips and suggestions specific to your environment.
Yes, we have several example reports available below. The report format is customizable to your requirements.
- Report 1 from NASA Armstrong shows a 1/2-inch grid used to map out an area where values were noted at less than nominal. The structural engineers used this data to determine if they could continue using the aircraft.
- Report 2 shows a 10mm grid on an A321 wing with readings taken from the Olympus 38DLP using the M208 probe. This was done on top of a previously hand-drawn grid to verify the accuracy of the Tracker’s gridding and readings.
- Report 3 shows a 1-inch grid of a 12ft x 1ft stretch using 4 different session “leapfrogs” to cover a larger area, for example a wing slat. We manually entered in some values at the same locations in overlapping sessions to show how they patch together.
- Report 4 shows multiple grid layers of 1-inch and 1/4-inch overlaid from a Leapfrog session on a fuselage, with readings taken from the EPOCH 650 using the M116-RM probe. Note that the readings were taken quickly for demo purposes to show general coverage and that proper calibration was not done.
We recommend viewing the larger reports in Adobe Acrobat Reader to zoom in more.
Exhibitions

09/23
A4A NDT Forum
Denver, CO

04/24
MRO Americas 2024
Chicago, IL

07/24
USAF NDI Vendor Night
Dayton, OH

09/24
A4A NDT Forum
Nashville, TN

10/24
ASNT 2024
Las Vegas, NV
Contact Us
We have spent over a decade delivering state-of-the-art NDT tracking and mapping solutions. We will partner with you to meet your requirements!
To schedule an onsite Tracker demo, reach out to: tracker@cybernet.com
